CBL-UA-UC-1WT

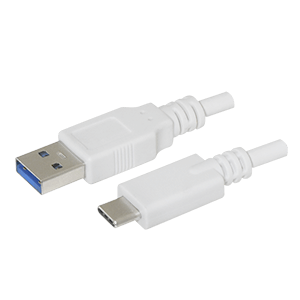

USB Cable, Type A Plug to Type C Plug, USB 3.1 Gen 1, 24/26/32 AWG, 1 m, White, PVC
Product Description
USB Cable, Type A Plug to Type C Plug, USB 3.1 Gen 1, 24/26/32 AWG, 1 m, White, PVC
Technical Specifications
| Attribute | Description |
|---|---|
| Cable Length (mm) | 1000 |
| Cable Style | Round |
| Color | White |
| Connector 1 | Type A Plug |
| Connector 2 | Type C Plug |
| Current Rating (A) | 3 |
| IP Rating | No IP Rating |
| Jacket Material | PVC |
| Operating Temp MAX (°C) | 80 |
| Operating Temp MIN (°C) | -20 |
| Shielding | Yes |
| USB Standard | USB 3.2 Gen 1 |
| Voltage Rating (Vdc) | 20 |
| Wire Diameter (mm) | 4.2 |
| Wire Gauge (AWG) | 24 |
