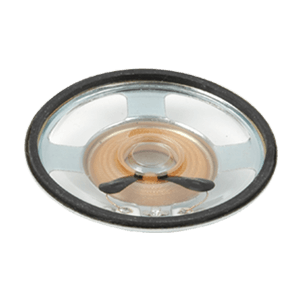

CLS0571M-L152
speaker, 57 mm round, 11.8 mm deep, PET, Nd-Fe-B, 0.2 W, 8 ?, 380 Hz, 152 mm wire leads
Product Description
speaker, 57 mm round, 11.8 mm deep, PET, Nd-Fe-B, 0.2 W, 8 ?, 380 Hz, 152 mm wire leads
Technical Specifications
| Attribute | Description |
|---|---|
| Cone Type | PET |
| Dimensions LxWxH (in) | 2.24 x 2.24 x 0.46 |
| Dimensions LxWxH (mm) | 57 x 57 x 11.8 |
| Enclosure | Not Required |
| Frame Shape | Round |
| Height (mm) | 11.8 |
| Impedance (Ohms) | 8 |
| IP Rating | No IP Rating |
| Length (mm) | 57 |
| Magnet Type | Nd-Fe-B |
| Max Input (W) | 0.5 |
| Mounting Style | Wire Leads |
| Nominal Input (W) | 0.2 |
| Resonance Freq. (Hz) | 530 |
| S.P. Level (dB) | 89 (0.2 W / 0.5 m) |
| Width (mm) | 57 |
