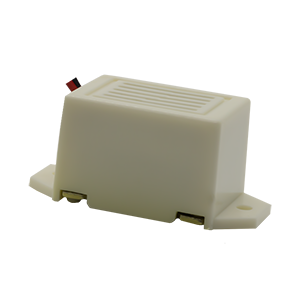

CS-3612
buzzer, 22.8 x 17 mm, 15.5 mm deep, SS, 12 V, panel mount w/ wires, driving circuit
Product Description
buzzer, 22.8 x 17 mm, 15.5 mm deep, SS, 12 V, panel mount w/ wires, driving circuit
Technical Specifications
| Attribute | Description |
|---|---|
| Curr. Consumption (mA) | 35 |
| Dimensions LxWxH (in) | 0.91 x 0.67 x 0.6 |
| Dimensions LxWxH (mm) | 23.3 x 17 x 15.3 |
| Driving Circuit | Yes |
| Height (mm) | 15.3 |
| Illumination | No |
| Input Type | Vdc |
| IP Rating | No IP Rating |
| Length (mm) | 23.3 |
| Mounting Style | Panel Mount |
| Operating Temp MAX (°C) | 70 |
| Operating Temp MIN (°C) | -30 |
| Shape | Rectangular |
| Sound Pressure (dB) | 82 |
| Technology | Solid State |
| Voltage Rating | 12 |
| Washable | No |
| Wave Solderable | No |
| Width (mm) | 17 |
