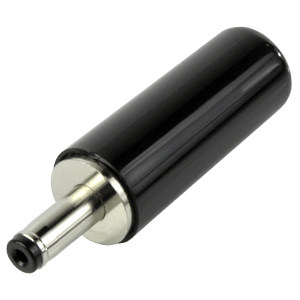

PP3-038D
power plug, 1.35 x 3.8 x 9.5 mm, straight, cable mount, round om
Manufacturer:
Same Sky (formerly CUI Devices)Category:
Connectors
Sub Category:
I/O Connectors (USB, HDMI, DP)
Product Description
power plug, 1.35 x 3.8 x 9.5 mm, straight, cable mount, round om
Technical Specifications
| Attribute | Description |
|---|---|
| Connector Type | Plug |
| Current Rating (A) | 4 |
| Dimensions LxWxH (in) | 1.4 x 0.35 x 0.35 |
| Height (mm) | 9 |
| Inner Diameter (mm) | 1.35 |
| Insertion Depth/Length (mm) | 9.5 |
| Internal Switch(es) | 0 |
| Length (mm) | 35.5 |
| Mounting Style | Cable - Modular |
| Number of Conductors | 2 |
| Orientation | Vertical |
| Outer Diameter (mm) | 3.8 |
| Shielding | No |
| Voltage Rating (Vdc) | 20 |
| Width (mm) | 9 |
